Blast mitigation
Developed for inelastic analysis of structural members subjected to blast-induced shock waves.
Dynamic analysis
Quickly generate SDOF time histories and PI diagrams for user defined blast threats.
Structural analysis
Generate custom resistance functions with the built-in structural analysis module.
Extensive validation
RCBlast has been extensively verified with data from real and simulated explosive testing.
Main features of the software
RCBlast was developed to conduct dynamic inelastic response history analysis of reinforced concrete elements subjected to blast-induced shock waves. A brief summary of the main features of the program are list below:
Dynamic SDOF analysis
RCBlast generates SDOF displacement time-histories by direct numerical integration of the dynamic equation of motion. The user has the ability to input custom load–deformation functions, or utilize those computed within the structural analysis module. There are no limitations on the user-defined applied pressure–time history, Pr(t), and resistance curves. The program can handle both inbound and rebound displacements and can consider hysteretic behaviour to determine post-peak member response.
Blast load calculation

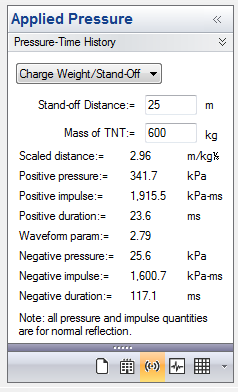

Blast loads can be input as a series of pressure-time data points defined by the user. The user may also specify the TNT equivalent explosive mass and stand-off distance and let RCBlast compute blast-pressure distribution automatically. Alternatively, the peak pressure and duration can be specified for use with a triangular blast load approximation.
Built-in structural analysis module

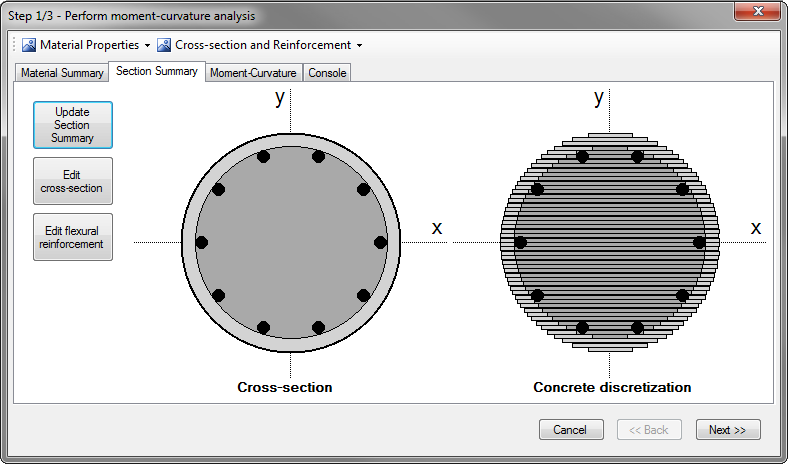

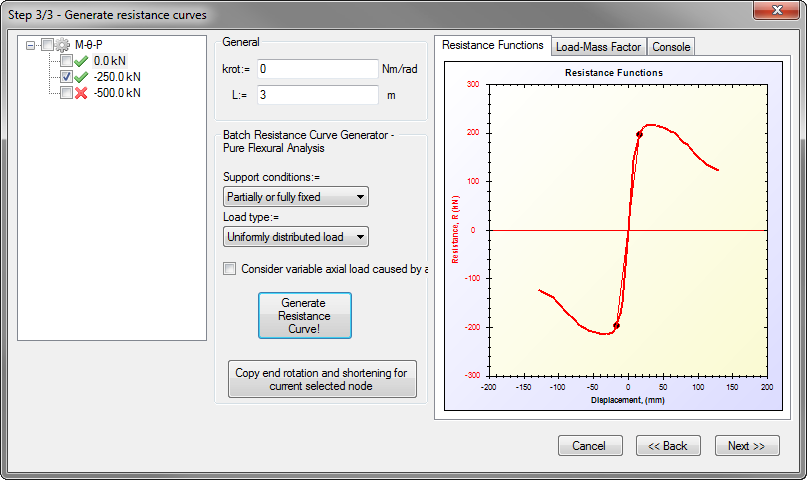

RCBlast has the built-in capability to generate resistance functions for one-way reinforced concrete members. The program incorporates some advanced structural analysis phenomenon not considered by other tools, such as:
- Formation and progression of plastic hinging
- Member softening caused by post-peak behaviour
- Ultimate displacement based on material properties

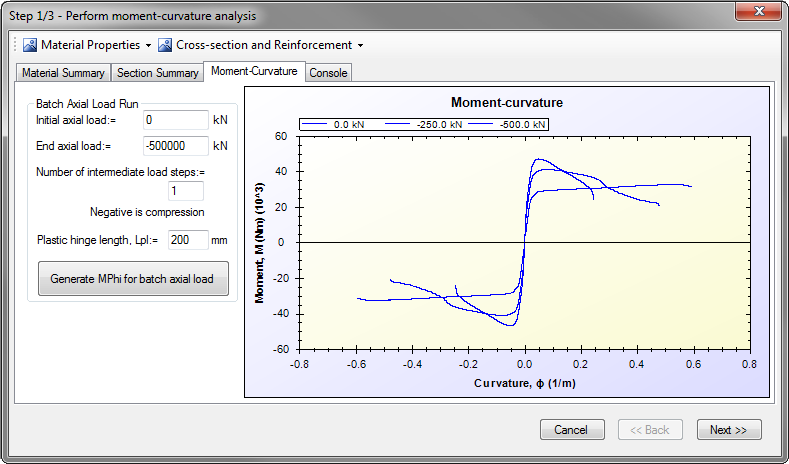

- Detailed material modelling
- Variation in axial load during response
PI diagrams
Pressure-impulse diagrams can be generated for any resistance function, however simple or complex. The program assumes a triangular forcing function with peak applied pressure and a linearly decrease load-time function. The tool can consider both positive phase only, and positive and negative phase on the PI diagram.
User friendly GUI
A graphical user interface (GUI) was developed to stream-line the analysis process. All parameters used in the solution of the dynamic equation of motion may be modified by the user within the GUI. Results are plotted on the screen, and the software has the capability to overlay plots of experimental results and theoretical predictions to facilitate data analysis. Program outputs are also made readily available for spreadsheet manipulations.
RCBlast Screenshots
Extensive verification
The blast analysis methodology incorporated into RCBlast has been verified against a variety of structures and has been used by numerous researchers and professionals. Click here for publications where RCBlast has been used.
Minimum requirements
- Windows XP and higher (x86 or x64)
- Microsoft .NET Framework 4
- Pentium 1Ghz and 512 MB RAM
- 27 MB hard disk space
Latests news and releases
Decmember 23, 2013
Version 0.5.1 released. Minor RCBlast software updates, including improved save/load GUI functionality and a prompt to ensure the user has saved their analysis prior to closing the software. I also updated the SDOF Displacement-Time History Plot tooltip message. The tooltip now displays detailed information (time, SDOF displacement, velocity, & acceleration) when the user hovers over a particular point on the plot. This can be accessed through the context menu by right clicking on the displacement plot. This feature is particularly useful for an upcoming paper I am writing since it facilitates the study of the accumulated damage phenomenon by readily outputting initial conditions for subsequent dynamic analyses. Enjoy the holidays!
October 22, 2013
Version 0.5.0 released. I'm in Phoenix, Arizona at the American Concrete Institute's Fall Convention presenting the results of an SDOF analysis I performed as part of a blind simulation contest sponsored by ACI. RCBlast was used exclusively for the analysis. My entry in the normal strength materials/SDOF modelling category won first place in the contest, while my entry in the high strength materials/SDOF modelling category placed second! In honour of this, I'm posting an updated version of RCBlast, with the following improvements: (i) added a perfect-plastic hysteretic model suitable for dynamic analysis of steel structures; (ii) incorporated a PDF report generator to facilitate transmittal and storage of analyses; (iii) corrected several bugs and improved SDOF solver performance (slightly); (iv) updated the donation screen; (v) minor GUI updates, and; (vi) updated the Help File. Enjoy the new features!
April 30, 2013
Version 0.4.1 released. Numerous bug fixes and improvements: (i) Corrected an error in the way time step is computed during development of PI diagrams affecting the pressure asymptote; (ii) corrected a bug where the SDOF analysis in "Maximum Displacement Mode" could run for too long; (iii) corrected a GUI bug which occurred when the user clicked "Cancel" in the Structural Analysis Module; (iv) corrected an issue with the date-time picker which could cause the program to crash upon opening *.SDOF files; (v) minor GUI updates.
February 15, 2013
Version 0.4.0 released. New feature called "Accumulated Damage," useful for modelling structures with reduced elastic stiffness due to previous cycles of inelastic response, has been added to SDOF module. Numerous bug fixes, performance tweaks, and code optimization were also implemented. The Help File and sample input files have also been updated.
January 16, 2013
Version 0.3.4 released. Added sample input files to help new users learn the features of RCBlast. Corrected a bug in the FRP stress-strain model and improved the manner in which FRP is displayed on the cross-section. Reduced the number of moment-curvature points stored within the program greatly improving performance and reducing storage requirements. Other GUI related updates: added splitter on main SDOF screen; added contextual help to most windows, and; "Export to CSV" feature re-written.
November 5, 2012
Version 0.3.3 released. Numerous updates to the structural analysis module: the user can now fine-tune the moment-curvature solver settings; validation of input data has been streamlined, and; corrected several GUI-related bugs.
October 31, 2012
Version 0.3.2 released. Added "Export to CSV" (comma-delimited text file) options for both SDOF and PI results. Corrected a bug which prevented pressure-time histories from being loaded from *.SDOF files, and; improved the performance of the PI diagram solver.
October 9, 2012
Version 0.3.1 released. Corrected a bug that prevented the user-defined pressure-time history from being correctly written to the save file.
September 28, 2012
Version 0.3.0 released. Added initial conditions to the SDOF module. Minor change in the way unloading stiffness is calculated for hysteretic modelling. Several other GUI bug fixes. RCBlast now automatically checks the web for a new version on start-up.
July 25, 2012
Version 0.2.0 released. Minor bug fixes to SDOF and PI diagram modules. Major overhaul of the structural analysis module, Incorporated a post-debonding FRP resistance curve model and compression membrane arching action model. Help File has been updated.
July 11, 2012
Version 0.1.1 released. Minor bugs in the GUI, but program is otherwise stable. First release of website.
More features for customers
Optimized for speed
Optimized code and GUI helps you blast through your workload.
Designed for flexibility
The flexibile architecture can handle any resistance function.
Easy to use
Perform complex dynamic analysis from scratch in minutes.
Results at your fingertips
User inputs and analysis results are readily available for export.
